MINIX Industriële RIC-SJ64-8W PC Intel® Celeron® J6412 2.6 GHz 8GB/256 GB Intel UHD Graphics Win 11 Pro.

Product description

• Brand:MINIX
• Availability: Out of stock

MINIX Industriële RIC-SJ64-8W PC Intel® Celeron® J6412 2.6 GHz 8GB/256 GB Intel UHD Graphics Windows 11 Pro.

The industrial-grade MINIX RIC SJ64-8W is the perfect solution for countless commercial and industrial applications.

MINIX has developed a new industrial PC with Windows 11 Pro and an integrated Intel Elkhart Lake J6412 Celeron® CPU for POS systems, medical systems, fuel stations, security systems, industrial automation, IoT solutions, digital signage applications such as information kiosks, advertising kiosks, and more.

Housed in a compact, sleek metal chassis, the MINIX RIC SJ64-8W offers high performance with powerful graphics and AI capabilities, while maintaining low power consumption.

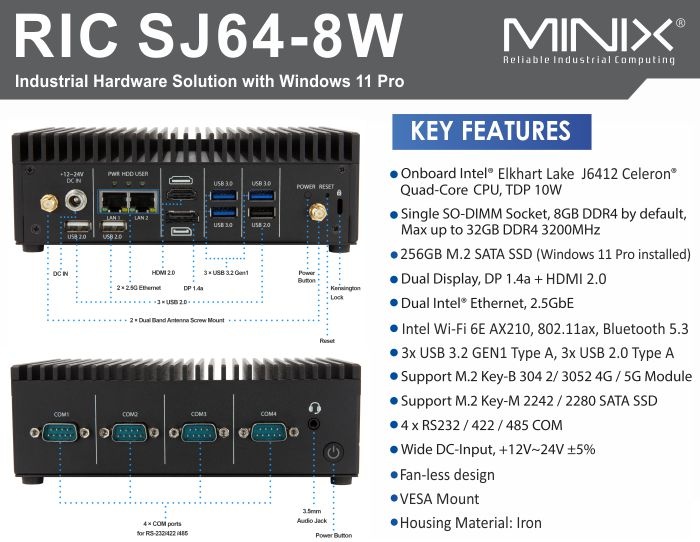

Specifications:

• Intel ® Celeron ® J6412 processor (up to 2.60 GHz)
• Single 260-pins DDR4 SO-DIMM socket (ondersteuning up to 32GB DDR4 3200 MHz) (non ECC supports)
• I/O Chipsat: Nuvoton NCT6126D
• AMI BIOS, 120M-bit SPI Flash ROM
• Watchdog timer: Programmable 1~255 sec, Support system reset
• TPM 2.0_SLB6702.0
• 1 x M.2 (Key-B, 3042, PCIe x1 + USB 3.0), 1 x M.2 (Key-M, M.2 SATA 2242/2280) tot 1 TB

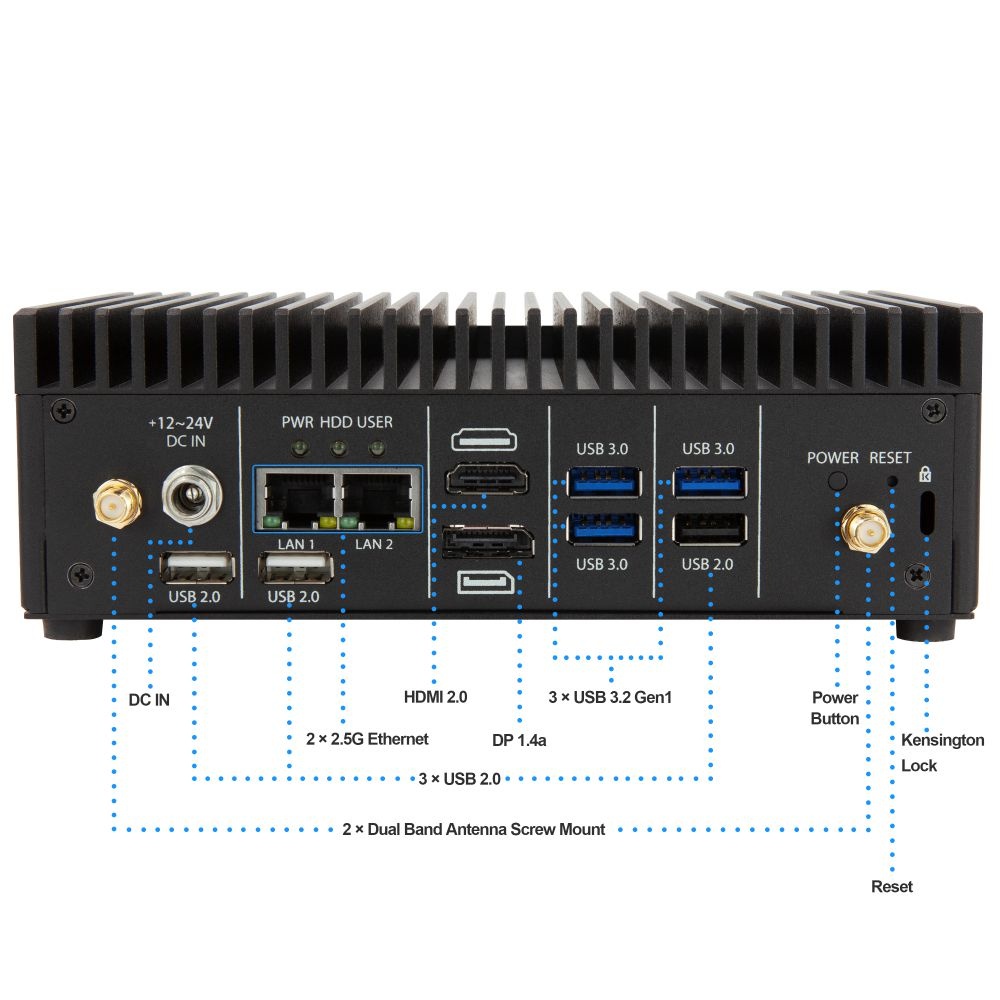

• USB-poorten: 3 x USB3.2 Gen1 type-A, 3 x USB2.0 type-A

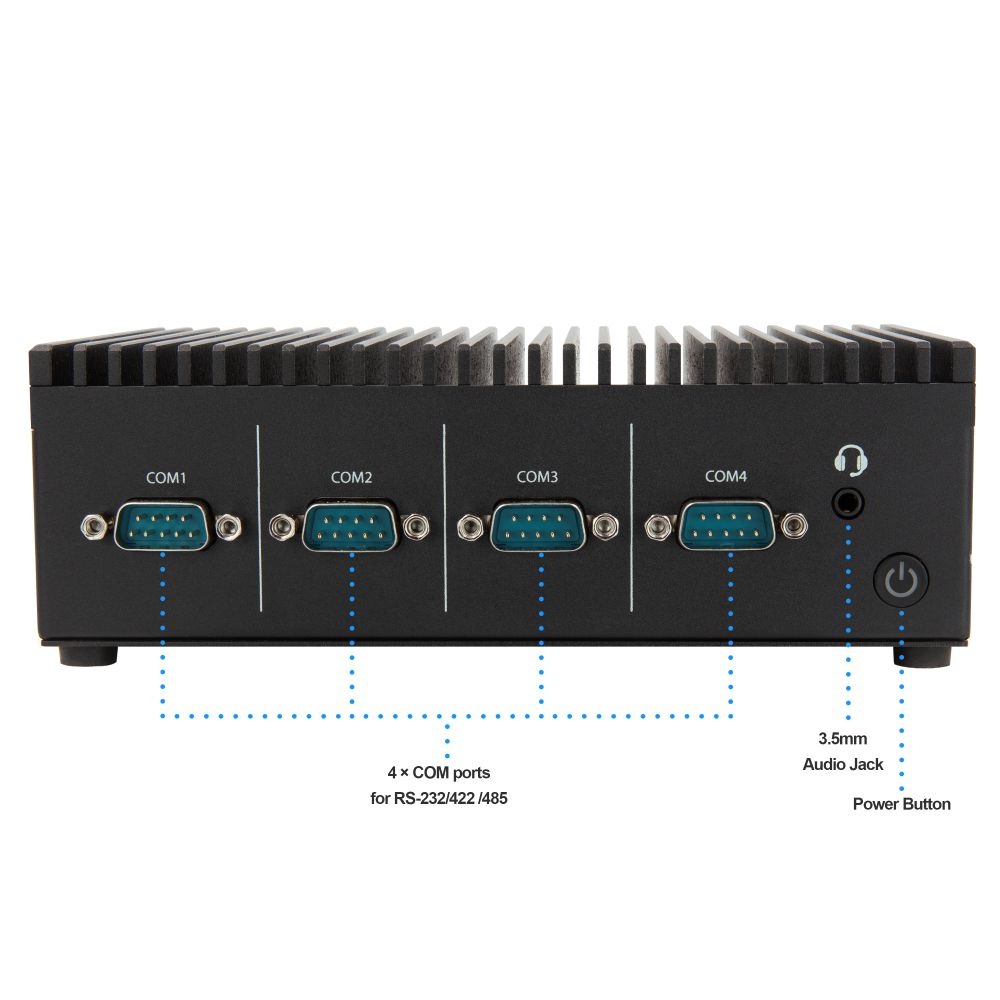

• COM-poorten: 4 x RS-232/422/485
• ondersteuning 1 x 2,5" SATA Storage
• grafische chip: Intel ® UHD Graphics for 10th gen Intel ® processors
• HDMI 2.0 Max resolution 4K@60Hz en DP 1.4a Max resolution 4K@60Hz - Dual display dual display
• audio: ALC897-VA2-CG Mic-in, Line-Out, 2-in-1 3,5 mm audio jack
• Certificate: CE CE, UKCA, FCC Class B
• LAN chipset: 2 x Intel Intel ® I226V
• Ethernet-interface: 2 x 10M/100M/G/5M
• temperatuur: Ethernet Operating Standard temp: 0°C ~ 60°C-
• Storager temperatuurbereik: 40°C ~ 85°C (-40°F ~ 185°F)
• stroomvoorziening: DC IN +12V ~ 24 V ±5%
• afmetingen: 175 x 106 x 56,5 mm
• besturingssysteem: Windows ® 11 Pro
• lader / netvoeding: 19V/3.42A, 65W adapter
• gewicht: 1,17 kg
