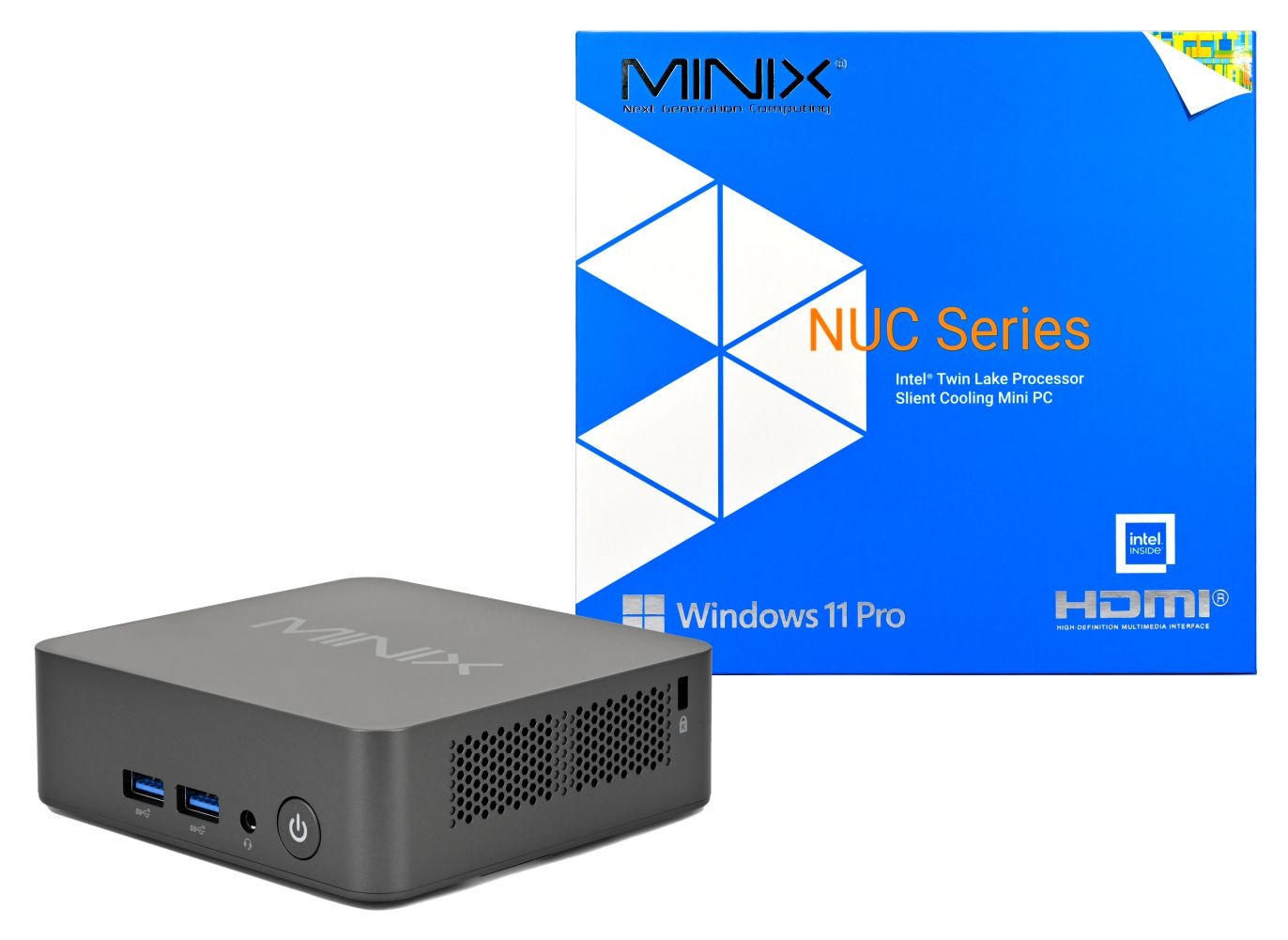

MINIX NUC150 Intel® Processor N150 16GB/512GB Mini PC
- Availability: Out of stock
Product description
- Brand:MINIX
- Availability: Out of stock
Compact Design
The NUC150 Mini PC boasts a sleek and compact design, with machine dimensions of 117*111*36mm (excluding foot pads). This makes it an ideal choice for users seeking a powerful yet space-saving computing solution.The NUC150 Mini PC boasts a sleek and compact design, with machine dimensions of 117*111*36mm (excluding foot pads). This makes it an ideal choice for users seeking a powerful yet space-saving computing solution.
Powerful Processor Options
Equipped with either an Intel® Processor N150 (4 Core, 6M Cache, 4 Threads, 3.60 GHz) or an Intel® Core™ 3 Processor N355 (8 Core, 6M Cache, 8 Threads, 3.90 GHz), the NUC150 guarantees smooth and efficient multitasking capabilities, suitable for various demanding applications.

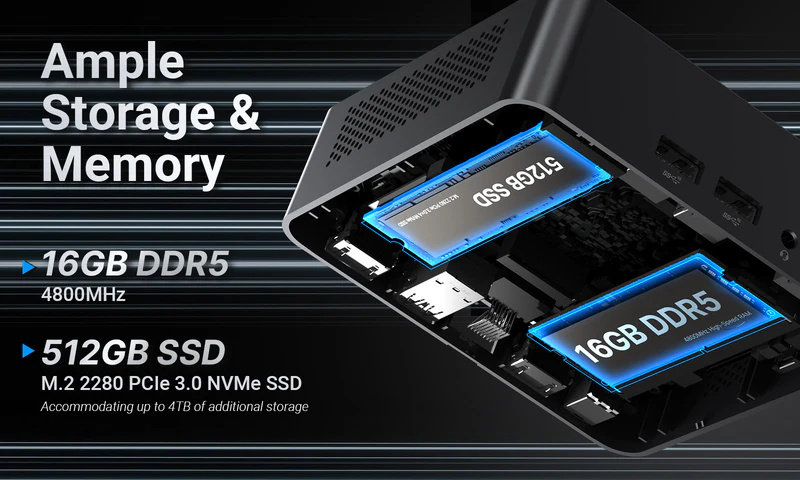

Ample Storage and Memory
The NUC150 comes with 16GB of DDR5-4800MHz memory and a 512GB M.2 2280 PCIe 3.0×4 NVMe SSD, ensuring fast boot times and quick data access. Additionally, it offers expansion options via one M.2 2280 PCIe 3.0×2 NVMe SSD slot and one M.2 2242 PCIe 3.0x1 NVMe SSD slot (compatible with SATA 3.0 SSD), accommodating up to 4TB of additional storage.

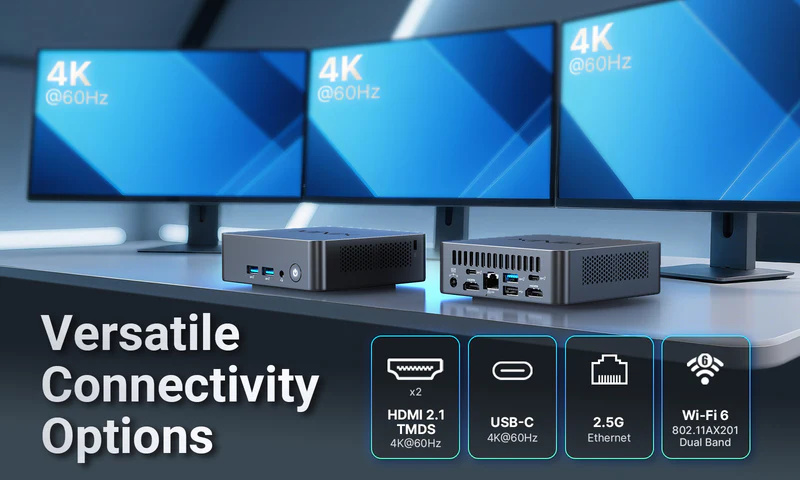

Versatile Connectivity Options
The NUC150 features a comprehensive array of connectivity options, including two HDMI 2.1 TMDS ports supporting 4K@60Hz, multiple USB ports (including USB-C with DisplayPort 1.4 and power delivery capabilities), a 2.5G Ethernet port, and an M.2 2230 Intel® 802.11AX201 Dual Band Wi-Fi 6 card with BT5.2. These features cater to a wide range of peripheral and networking needs.
Operating System Flexibility
The NUC150 ships with Windows 11 Pro, offering a user-friendly and powerful operating system. It also supports multiple languages, making it accessible to users worldwide.

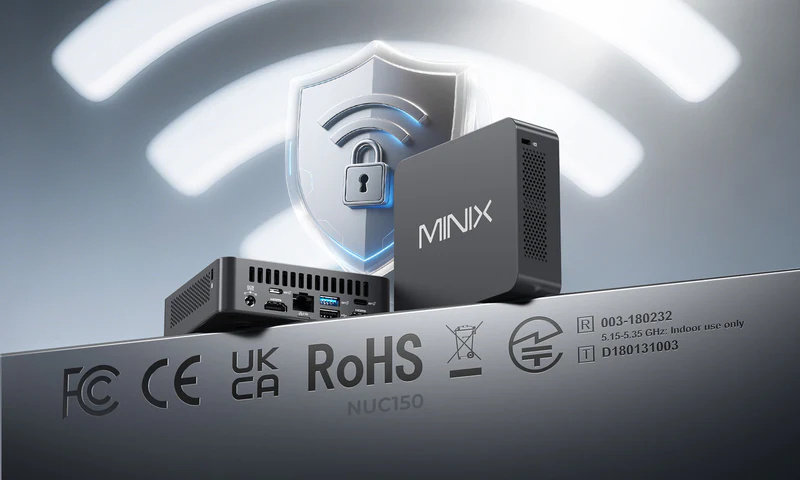

Comprehensive Certification
The NUC150 has obtained various certifications, including FCC, CE, UKCA, ROHS, WEEE, and PSE, ensuring compliance with global safety and environmental standards. Its Wi-Fi module, the AX201NGW, has also received numerous certifications from regulatory bodies around the world, guaranteeing reliable and secure wireless connectivity.

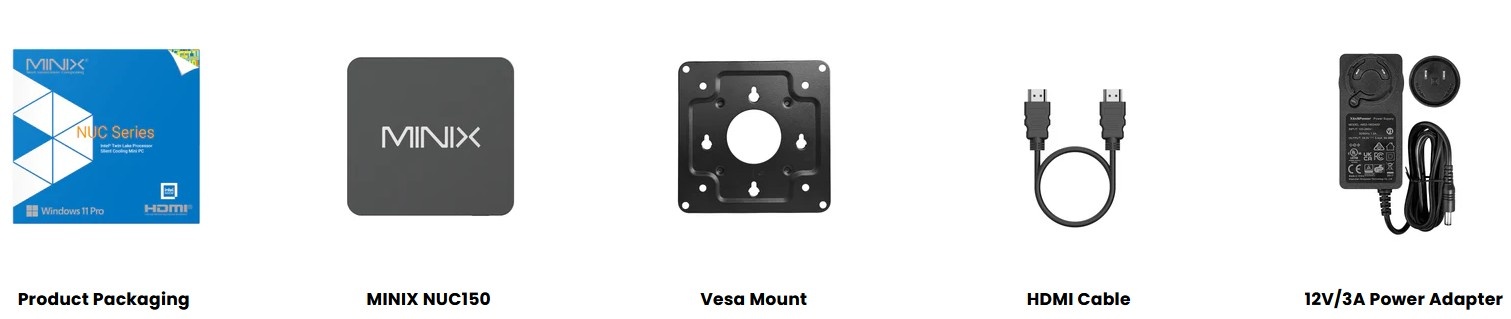

Contents
Specifications
CPU: Intel® Twin Lake, MAX TDP. 15W Intel vPro N150
Chipset: SOC
BIOS: AMI UEFI BIOS
Multi displays: Support 3 display
Interface: 1 x HDMI TMDS 2.1 , 1 x TYPE-C
Type: 1 x SO-DIMM DDR5
Parameter: 16GB
Lan IC: 1 x 8125GB(8111K)
Interface: 1 * RJ-45 2.5G Ethernet
Type: WiFi 6
Interface: 1 x M.2 2230
Parameter: 512GB
Interface: 1 x M.2 2280 (NVME PCIE3.0 ), 1 x M.2 2242 KEY-M (SATA/NVME)

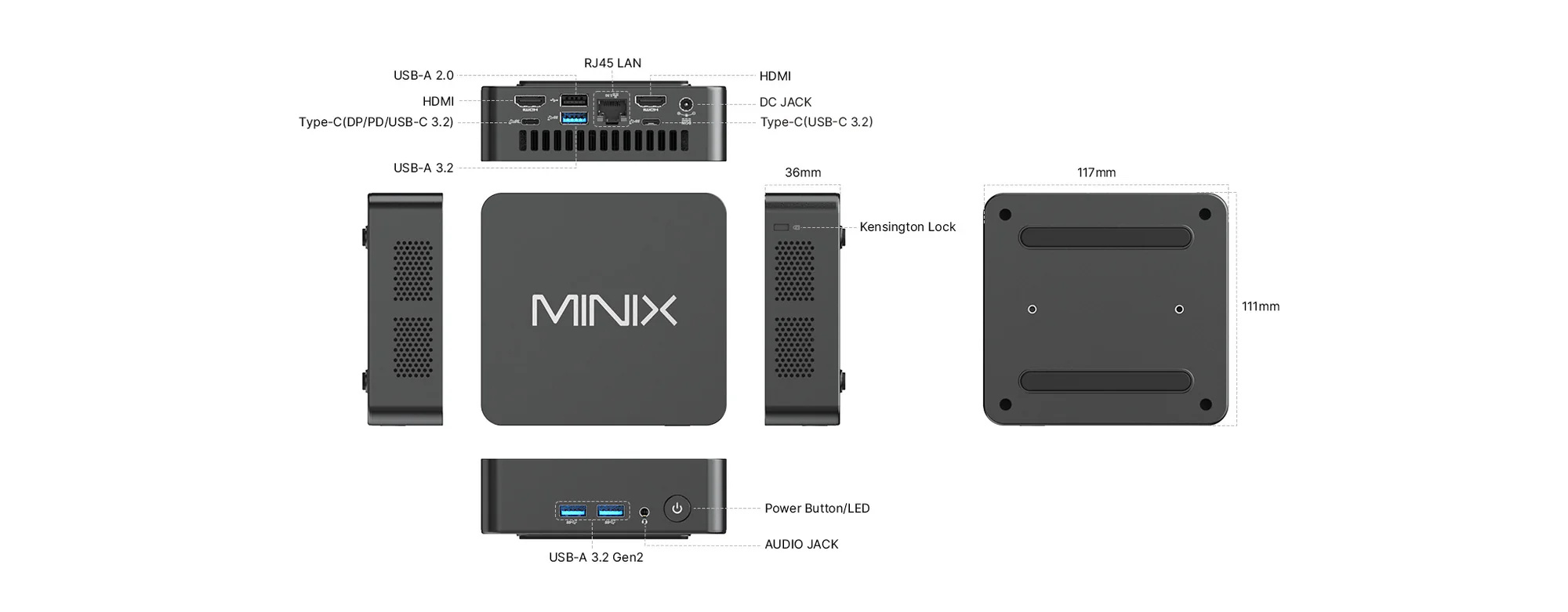

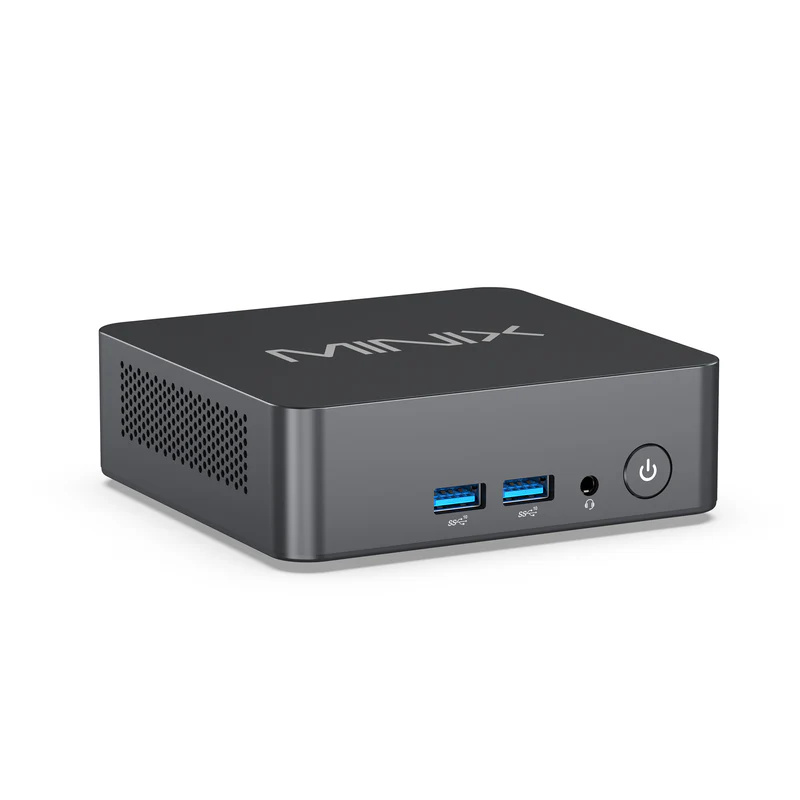

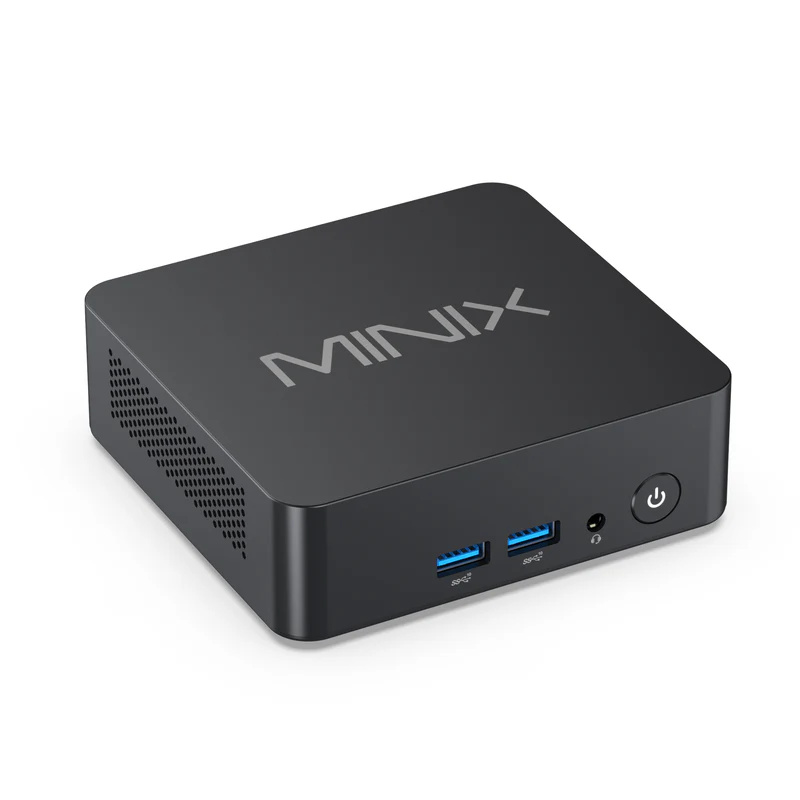

Front panel: 1 x Power Button, 1 x 3.5mm Combo Audio Jack, 2 x USB-A 3.2 Gen2

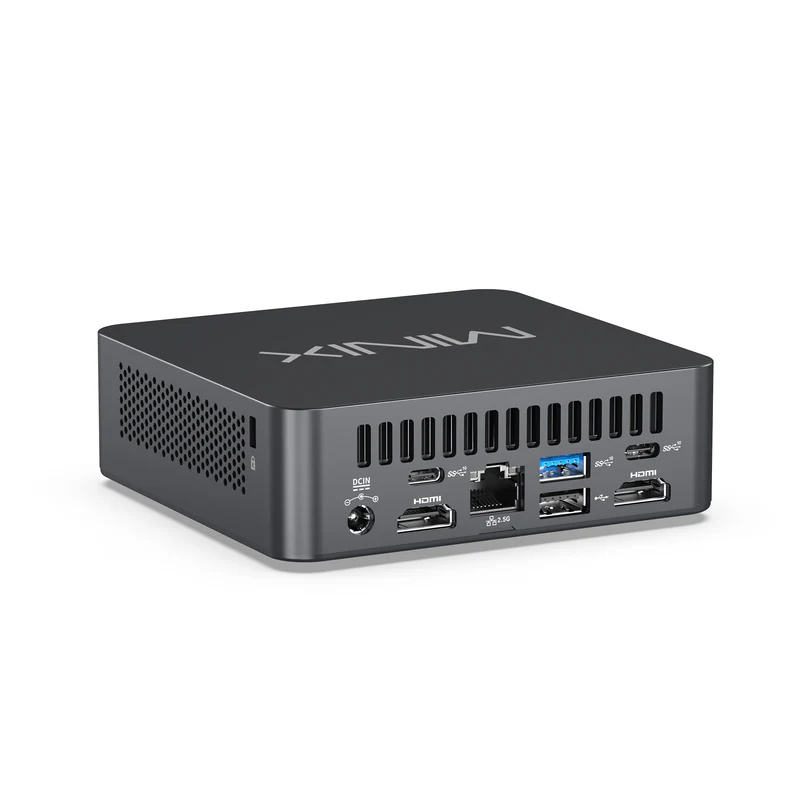

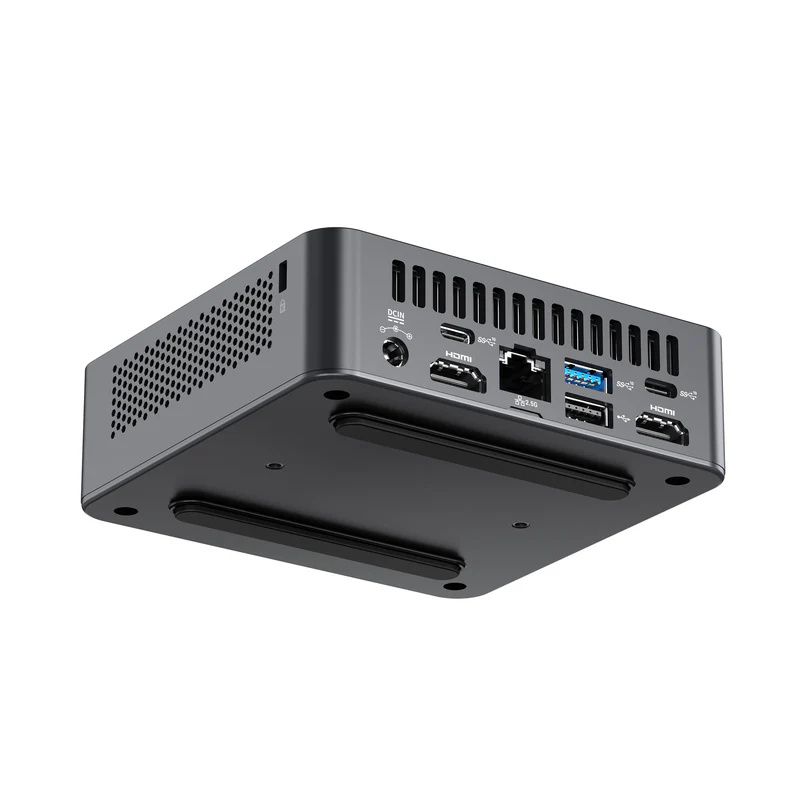

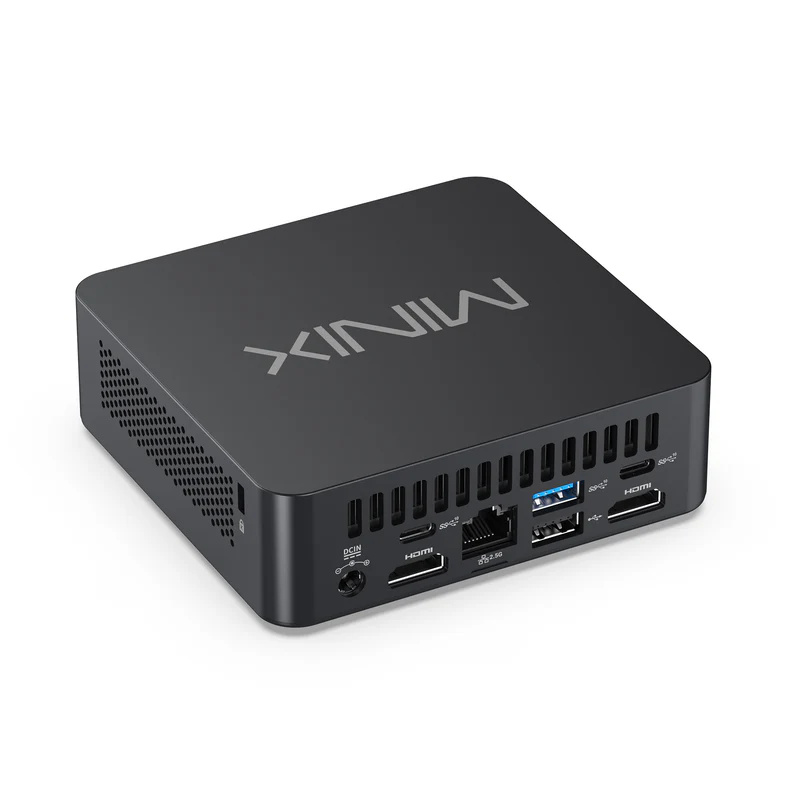

Rear panel: 2 x HDMI (2K144Hz/4K60Hz), 1 x RJ45 (1G/2.5G), 1 x Type-C (DP, USB 3.2,PD OUT 15W), 1 x USB-C 3.2 Gen2, 1 x USB2.0 TypeA, 1x Type-A (USB3.2 Gen2x1) A, 1 x DC Jack
OS Supports: WINDOWS 11 Pro
19V DC
117 x 111 x 36 mm
Operating Temp: -5~45℃
Operating Humidity: 10%~90% non-condensing
Storage Temp: -20~70℃
Storage Humidity: 5%~95% non-condensing
